Ø 5G NR and LTE-A Cat20 Dual mode

Ø Wi-Fi 6 Supports 802.11ax, OFDMA, and MU-MIMO. Maximum 1.8Gbit/s throughputs

Ø Support both NSA and SA modes

Ø Worldwide Sub-6 5G and LTE-A coverage

Ø Built-in high gain wide bandwidth antennas

Ø Advanced MIMO, AMC, OFDM support

Ø Wi-Fi SON support

Ø Support two Gigabit Ethernet ports

Ø Powerful software features, support NAT, Bridge and Route mode

Ø IPv4&IPv6 and Multiple PDN support

Ø Built-in VPN and L2/L3 GRE client support

Ø WEB, TR069 and SNMP-based device management

Cellular Bands:

Variant for Europe/Asia

Ø 5G NR:   n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78/n79

Ø LTE-FDD: B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32

Ø LTE-TDD: B34/B38/39/B40/B41/B42

Ø WCDMA: B1/B3/B5/B6/B8/B19

Ø Variant for North America

Ø 5G NR: n2/n5/n7/n12/n25/n41/n48/n66/n71/n77/n78

Ø LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71

Ø LTE-TDD: B41/B48

Ø LAA: B46

Ø WCDMA: B2/B4/B5

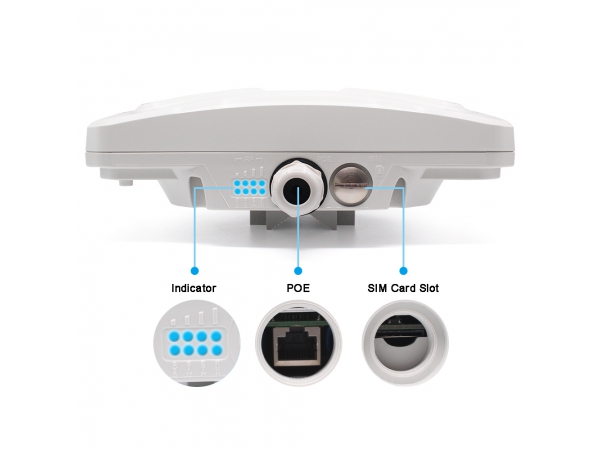

Interfaces

Outdoor:

Ø 1*Gigabit RJ45 LAN Ports with PoE

Ø 10/100/1000M auto-sensing, auto-MDI/MDIX

Ø 1 2FF USIM/SIM slot(1.8V/3V)

Router:

Ø 2 xRJ45 Gigabit Ethernet port

Ø 1 x Reset/Restore Button

Ø 1 x DC Power Jack

Power supply

Ø Router:  Input: 100~240V AC, 12V 3A DC

Wi-Fi

Ø Wi-Fi support: 802.11b/g/n/ac/ax, Wi-Fi SON support

Ø 4 Wi-Fi antennas, dual frequency

Temperature

Outdoor:

Ø Operating: -30℃~ 55℃

Ø Storage: -40℃ ~ 85℃

Router:

Ø Operating: 0℃~45℃;

Storage: -40℃~70℃

Data Service

Ø Supports four APNs (two for data, one for voice, and one for management)

Ø Supports Multi PDN

Supports IPv4/6 dual stack

LAN

Ø VLAN 802.1Q

Ø DHCP Server, Client

Ø DNS and DNS proxy

Ø DMZ

Ø Multicast/Multicast Proxy

Ø MAC Address Filtering

Ø GPS broadcast to LAN

WLAN

Ø Compliance with IEEE 802.11a/b/g/n/ac/ax

Ø Maximum rate of up to 1.8 Gigabit/s

Ø Beam-forming

Ø MU-MIMO

Ø Short guard interval (GI) in 20 MHz, 40 MHz, 80 MHz, and 160 MHz modes

Ø Priority mapping and packet scheduling based on a Wi-Fi Multimedia (WMM) profile

Ø Automatic and manual rate adjustment

Ø WLAN channel management and channel rate adjustment

Ø Automatic channel scanning and interference avoidance

Ø Service set identifier (SSID) hiding

Ø WPS

Ø Encryption: WEP, AES, and TKIP + AES

Ø Security mode: Open, WPA2.0 PSK, WPA1.0/WPA2.0 PSK, WEP Shared Key (four keys at most)

VPN and Routing

Ø Route Mode

Ø Bridge Mode

Ø NAT mode

Ø Static Route

Ø Port Mirror

Ø ARP

Ø IPv4, IPv6 and IPV4/IPv6 Dual Stack

Ø Port forwarding

Ø IPsec

Ø PPTP

Ø GRE Tunnel

Ø L2TPv2 and L2TPv3

Ø VPN pass-through
