M50 is with powerbank feature and easy to use, you can connect the router with the USB interface of a computer, or connect via Wi-Fi. In the service area of the LTE FDD /DC-HSPA+ /HSPA+ / HSPA/UMTS or EDGE/GPRS/GSM network, you can surf the Internet and send/receive messages/emails.It is with battery, you can use it at home, in the office or the way to travel, sharing the wifi with your friends.
Yeacomm M50 Mobile Powerbank WiFi Router is a high-speed packet access mobile hotspot. It is a multi-mode wireless terminal for SOHO (Small Office and Home Office) and business professionals.
M50 supports the following standards:
*Long Term Evolution (LTE) Frequency Division Duplex (FDD) Time Division Duplex(TDD)
*Dual Carrier High Speed Packet Access Plus (DC-HSPA+)
*High Speed Packet Access Plus (HSPA+)
*High Speed Uplink Packet Access (HSUPA)
*High Speed Downlink Packet Access (HSDPA)
*Universal Mobile Telecommunications System (UMTS)
*Enhanced Data rates for Global Evolution (EDGE)
*General Packet Radio Service (GPRS)
*Global System for Mobile communications (GSM)
*M50 provides the following services:
*LTE FDD packet data service
*DC-HSPA+ packet data service
*HSPA+/HSPA/UMTS packet data service
*EDGE/GPRS packet data service
*Short Message Service (SMS)
|
Item
|
Description |
|
CPU |
ZX297520V3T |
|

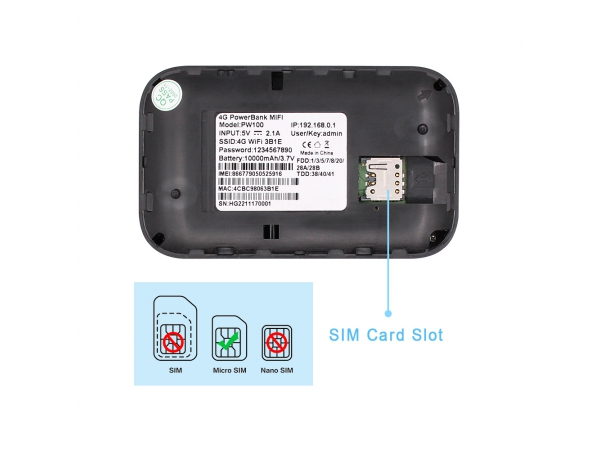

USIM Slot |
Micro SIM card |
|

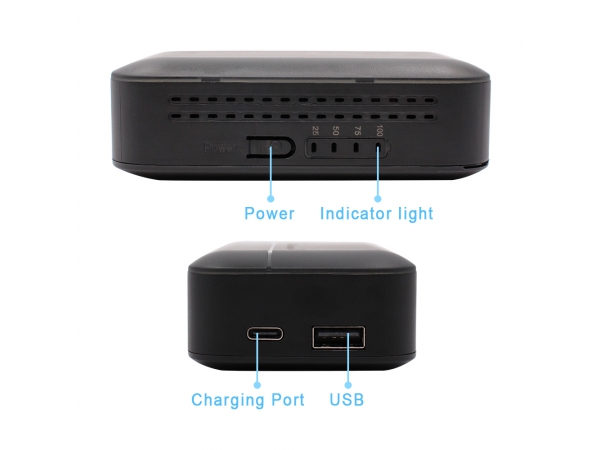

USB Port |
Standard USB Type C*1，USB Type A*1 |
|
Power Button |
Hold on 3s to power on/off Short press to wake up /Light the LED |
|
Reset Button |
Tactile button. Long press over 10s to restore the factory settings |
|
LED Indicators |
WIFI/Connection *1 Power display*4 |
|
Battery |
10,000MAh (With Powerbank Feature) |
|
Power Supply (USB input) |
5V/2.4A |
|
Power Supply (USB outut) |
5V/2.4A |
|
Dimensions |
99mm (H) x 60mm (W) x 31mm (D) |
|
Weight |
About 220g |
|
Item |
Description |
|
Wireless Access Technology |
TD-LTE/FDD/WCDMA |
|
3GPP/3GPP2 protocol |
LTE FDD/TDD Rel 9 CAT4 |
|
Bands |
Europe & Africa FDD:B1/B3/B7/B8/B20/B28 TDD:B38/40/41 WCDMA:B1/B5/B8 Latin America FDD:B2/B4/B5/B7/B28A/B28B WCDMA:B2/B4/B5 Asia: FDD:B1/B3/B5/B8 TDD:B38/40/41 WCDMA:B1/B8 |
|
Data Rate |
LTE FDD：Max 150Mbps（DL）/ Max 50Mbps （UL）； LTE TDD：Max 130Mbps（DL）/ Min 35Mbps （UL）； WCDMA：Max 21Mbps（DL）/ Max 5.76Mbps（UL）； |
|
Receive Sensitivity |
Compliance with 3GPP standard |
|
MAX Output Power |
LTE FDD：23dBm±2dB； LTE TDD：23dBm±2dB； WCDMA：24dBm+1dB/-3dB； |
|
Wireless MIMO technology |
LTE 1T2R ,DL MIMO 2*2 |
|
Antenna Type |
Internal Antenna |
|
Antenna Gain |
2~3dBi |
