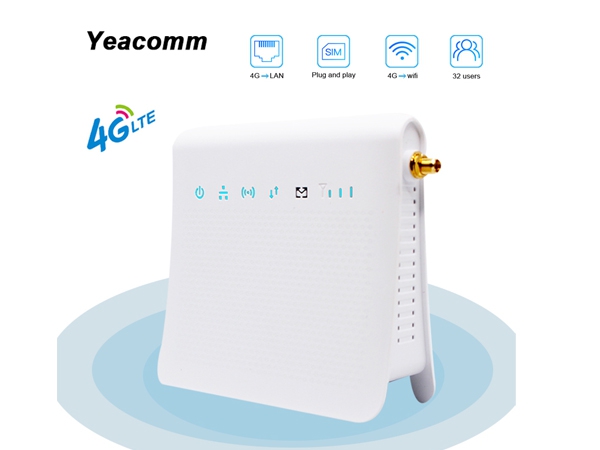

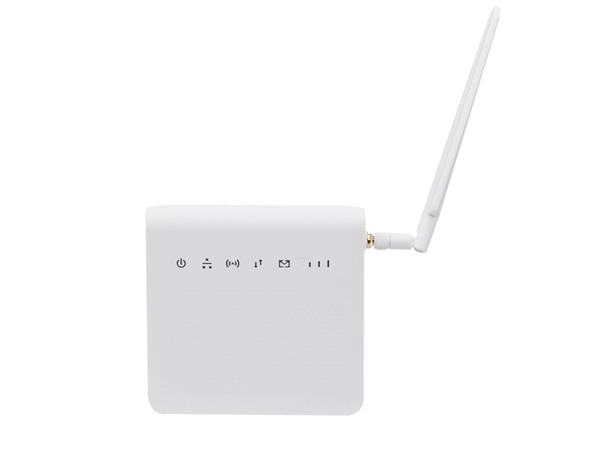

As a high-performance LTE CPE device, the YF-P25 enables home office (SOHO) users to get access to wireless and wired networks
The Yeacomm YF-P25 can work in any of the following network standards:
Frequency Division Duplex (FDD)
Time Division Duplex(TDD)
Dual Carrier High Speed Packet Access Plus (DC-HSPA+)
High Speed Packet Access Plus (HSPA+)
High Speed Uplink Packet Access (HSUPA)
High Speed Downlink Packet Access (HSDPA)
Universal Mobile Telecommunications System (UMTS)
Enhanced Data Rates for Global Evolution (EDGE)
General Packet Radio Service (GPRS)
Global System for Mobile Communications (GSM)
The Yeacomm YF-P25 provides the following services and functions :
-Support 3GPP Release 9/10 compliant
-Support 1TX/2RX
-Support UE Category 3/4
-Supports QoS service flow initiated by CPE
-Supports Dynamic Host Configuration Protocol
-Built-in web server for web-based configuration
-Password protected access and configuration
-Supports IEEE 802.3, IEEE 802.3u
-USIM Slot
|
Item
|
Description
|
|||
|
Technical
standards
|
WAN:
LTE/DC-HSPA+/HSPA+/HSPA/UMTS/EDGE/GPRS/GSM
|
|||
|
WLAN: 802.11b/g/n
|
||||
|
Working bands
|
FDD: Band1/2/3/5/7/8/20/28
TDD: Band38/39/40/41
WCDMA:850/900/1900/2100Mhz
GSM:850/900/1800/1900mhz
The frequencies could be customized for quantity order
|
|||
|
Speed
|
FDD - LTE Downlink：150Mbps， Uplink：50Mbps
TDD-LTE: Downlink：150Mbps， Uplink：50Mbps
HSPA+: 42Mbps(download speed) 5.76Mbps(upload speed)
HSUPA: 5.76Mbps (upload speed)/ HSDPA:7.2Mbps(download speed:)
UMTS:384Kbps (download speed/upload speed)
(it is cat4)
|
|||
|
Wifi
|
WIFI Standard
|
IEEE 802.11b/g/n
|
||
|
WIFI Rate
|
Highest rate 144Mbps
|
|||
|
RF power
|
17dBm(Max) in 11b mode
17dBm(Max) in 11g mode
16dBm(Max) in 11n mode/chain
|
|||
|
Wifi users
|
Max up to 32 users
|
|||
|

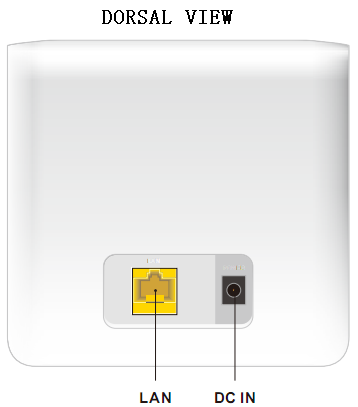

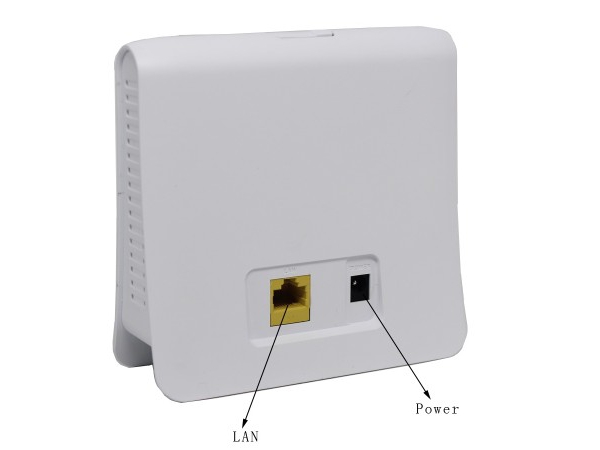

Interface
|
1*RJ45 port
|
|||
|

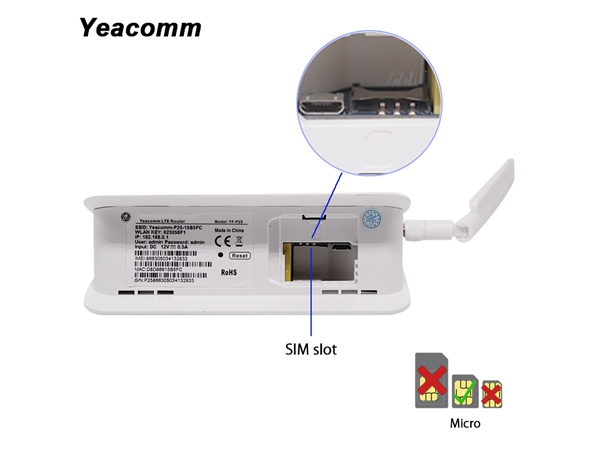

1*sim card slot
|
||||
.png) |
||||
|

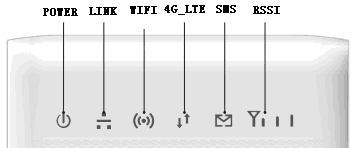

LED
|
 |
|||
|
Reliability
|
3GPP Release 9/10
|
|||
|
UE Cat 4
|
||||
|
2x2 MIMO
|
||||
|
Physical Size
|
dimension
|
120x115x45(mm)
|
||
|
Weight
|
250g
|
|||
|
Temperature
|
Working temperature
|
0～60℃
|
||
|
Storage temperature
|
-20～85℃
|
|||
Software Specification
|
NAT
|
Supports NAT and Network Address and Port
Translation (NAPT)
|
|
Supports fragmented message identification
during common NAT
|
|
|
DHCP Server
|
Enables and disables the DHCP server
|
|
Configures DHCP server address pools
|
|
|
Sets the lease time.
|
|
|
Displays the status of the DHCP server address pools, including host names, Media Access Control (MAC) addresses, IP addresses, and remaining lease time
|
|
|
Firewall
|
Enables and disables the firewall.
|
|
Filters LAN MAC addresses
|
|
|
Filters LAN IP addresses.
|
|
|
Filters URLs.
|
|
|
Supports port Mapping
|
|
|
Supports demilitarized zone (DMZ).
|
|
|
Supports Universal Plug and Play (UPnP).
|
|
|
Speed limit
|
|
|
SMS
|
Read, write, send SMS
|
|
MAC address
authentication
|
Supports the MAC address authentication whitelist.
|
|
Supports the MAC address authentication blacklist.
|
|
|
TR069
|
Support
|
|
Frequency locking
|
Support
|
|
Working mode
|
3g/4g
|
|
3g only
|
|
|
4g only
|
|
|
Remote upgrade
|
Support
|
|
Wifi security
|
Open (Unsecure)
|
|
WEP 64 – 5 ASCII characters or 10 HEXcharacters
|
|
|
WEP 128 – 13 ASCII characters or 26 HEXcharacters
|
|
|
WPA Personal / PSK (TKIP) – ASCII string, 8 to 63 characters in length
|
File Name : Type: Size: Version:
Yeacomm P25 4G CPE Specificati... PDF 333.97 KB
