X21

Technical specifications

5G Platform

Support Bands

5G NR: N1/N3/N8/N28/N41/N77/N78/N79

4G FDD: B1/B2/B3/B5/B7/B8/B20/B28A/ B28B, B32 can be customized;

4G TDD: B34/B38/B39/B40/B41

MIMO

5G DL MIMO 4*4, UL MIMO 1*1

LTE: MIMO 2*2

WIFI：
MIMO 2*2(5G)

MIMO 2*2(2.4G)

5G/4G TX/RX

2T4R/1T2R

Rate level

5G NR: 1Gbps (UL), 2Gbps (DL)

Transmitting power

5G NR: 23+-2dBm

LTE: 23+-2dBm

Antenna

4 Built-in 5G antennas

2 Built-in 4G antennas

WIFI

WIFI Band

2.4GHz/5GHz

Wi-Fi Antenna

2 Built-in 2.4G Wi-Fi antennas

2 Built-in 5G Wi-Fi antennas

WIFI Standard

IEEE 802.11b/g/n/ac

Wi-Fi Output Power

16 dBm/2.4G; 18 dBm/5G;

Number of linking users

2.4G Wi-Fi: 32

5G Wi-Fi: 32

Network Features

Networking protocols

PPTP、L2TP、IPsec(Optional)、PPPoE、DHCP、Client/Server、NAPT、NTP

High-speed router

Built-in DHCP Server，DNS Client，support NAT

Dialing function

Manual dialing，autodialing，PPPOE dialing。

SIM card Features

PIN Management, SIM card Authentication

Management

Web smart

support

Centralized network

management

support

Remote Upgrade

support

Security

Security Features

Support port filtering, IP filtering, MAC filtering, URL filtering, MAC address

binding

Speed control

Support UL and DL speed limit , port speed limit ,

Hardware

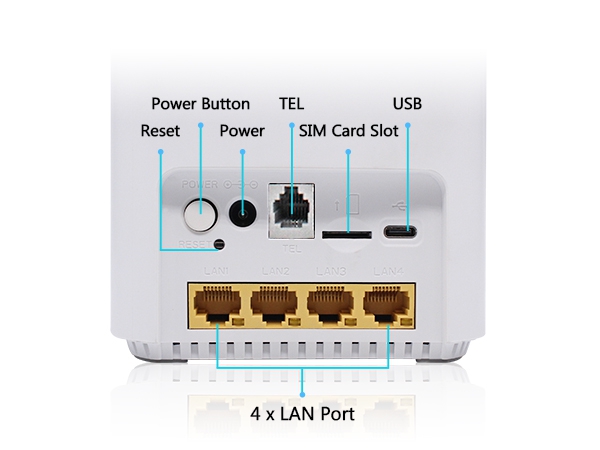

LAN/WAN

4*RJ-45

FXS

1*RJ-11 (Optional)

PSU

AC100V~240V,50Hz~60Hz

DC 12V DC±10% 2A

power

< 24W

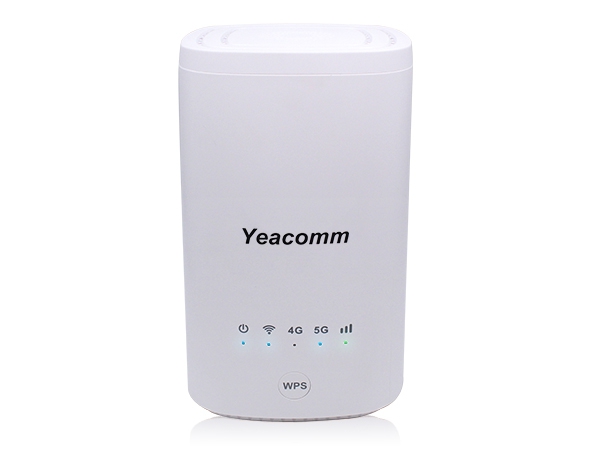

Indicators

1.       Power

2.       Wi-Fi Switch Status

3.       4G Internet

4.       5G Internet

Signal Bar Indicator

Physical Characteristics

Working temperature

-20～50℃

Stock  temperature

-40～85℃

huminity

≤95％
