YF360 Series Cellular WIFI ROUTER is a kind of cellular terminal device that provides large data transmission function by public UMTS/HSDPA/HSUPA/HSPA+/LTE network.
It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 (or RS485/RS422), Ethernet and WIFI port that can conveniently and transparently connect devices to a cellular network, allowing you to connect to your existing serial, Ethernet and WIFI devices with only basic configuration.
It has been widely used on M2M fields, such as self-service terminal industry, intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.
Design for Industrial Application
High-powered industrial cellular module
High-powered industrial 32bits CPU
Support low-consumption mode, including sleep mode, scheduled online/offline mode, scheduled power-on/power-off mode(optional)
Housing: iron, providing IP30 protection.
Power range: DC 5~36V
Stability and Reliability
Support hardware and software WDT
Support auto recovery mechanism, including online detect, auto redial when offline to make router always online
Ethernet port: 1.5KV magnetic isolation
RS232/RS485/RS422 port: 15KV ESD protection
SIM/UIM port: 15KV ESD protection
Power port: reverse-voltage and over-voltage protection
Antenna port: lightning protection(optional)
Standard and Convenience
Support standard RS232(or RS485/RS422), Ethernet and WIFI port that can connect to serial, Ethernet and WIFI devices directly
Support standard WAN port and PPPOE protocol that can connect to ADSL directly
Support intellectual mode, enter into communication state automatically when powered
Provide management software for remote management
Support several work modes
Convenient configuration and maintenance interface（WEB or CLI）
High-performance
Support multiple WAN access methods, including static ip, DHCP，PPPOE，3G/UMTS/4G/LTE，dhcp-4G
Support double link backup between LTE/ WCDMA and WAN(PPPOE, ADSL) (optional)
Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)
Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)
Support local and remote firmware upgrade, import and export configure file.
Support NTP, RTC embedded.
Support multiple DDNS provider service.
Support VLANs, MAC Address clone, PPPoE
WIFI support 802.11b/g/n. support AP, client, Adhoc, Repeater, Repeater Bridge mode.
WIFI support WEP,WPA,WPA2 encryption, Support MAC address filter.
Support multiple online trigger ways, including SMS, ring and data. Support link disconnection when timeout
Support APN/VPDN
Support DHCP server and client, firewall, NAT, DMZ host , URL block, QoS, traffic statistics, real time link speed statistics etc.
Full protocol support, such as TCP/IP, UDP, ICMP, SMTP(optional), HTTP, POP3(optional), OICQ(optional), TELNET, FTP(optional), SNMP, SSHD, etc.
Schedule Reboot, Schedule Online and Offline,etc.
Support GPS function (Optional)
|
Cellular Module
|
Industrial cellular module
|
|
Standard and Band
|
HSPA+/HSUPA/HSDPA/WCDMA/UMTS 2100/1900/900/850MHz
EDGE/GPRS/GSM 1900/1800/900/850MHz
|
|
Bandwidth
|
HSPA+: 21Mbps(Download speed) 5.76Mbps(Upload speed)
HSUPA:5.76Mbps(Upload speed)
HSDPA:7.2Mbps(Download speed)
UMTS:384Kbps (DL/UL)
CDMA2000 1X EVDO: 3.1Mbps(DL)/1.8Mbps(UL)
EDGE: 236.8Kbps(DL/UL)
GPRS: 85.6Kbps
|
|
TX power
|
<23dBm
|
|
RX sensitivity
|
<-93.3dBm
|
|
Item
|
Content
|
|
GPS Module
|
Industrial GPS module
|
|
Receiver Type
|
50-channel
GPS L1（1575.42MHz）C/A code
SBAS: WAAS,EGNOS,MSAS,GAGAN
Support GALILEO
|
|
Max. update rate
|
4 Hz
|
|
Accuracy
|
Position: 2.5m CPE
SBAS: 2.0m CPE
|
|
Acquisition
|
Cold starts: 29S
Warm starts: 29S
Aided starts: <1S
Hot starts: <1S
|
|
Sensitivity
|
Tracking: -160dBm
Reacquisition: -160dBm
Cold starts: -144dBm
|
|
Timing accuracy
|
RMS: 30ns
99%: <60ns
Granularity: 21ns
|
|
Time pulse
|
Configurable, 0.25 to 1000Hz
|
|
Item
|
Content
|
|
Standard
|
IEEE802.11b/g/n
|
|
Bandwidth
|
IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max)
|
|
Security
|
WEP, WPA, WPA2, etc.
WPS (optional)
|
|
TX power
|
20dBm（11n），24dBm（11g），26dBm（11b）
|
|
RX sensitivity
|
<-72dBm@54Mpbs
|
|
Item
|
Content
|
|
CPU
|
Industrial 32bits CPU
|
|
FLASH
|
16MB(Extendable to 64MB)
|
|
DDR2
|
128MB
|
|

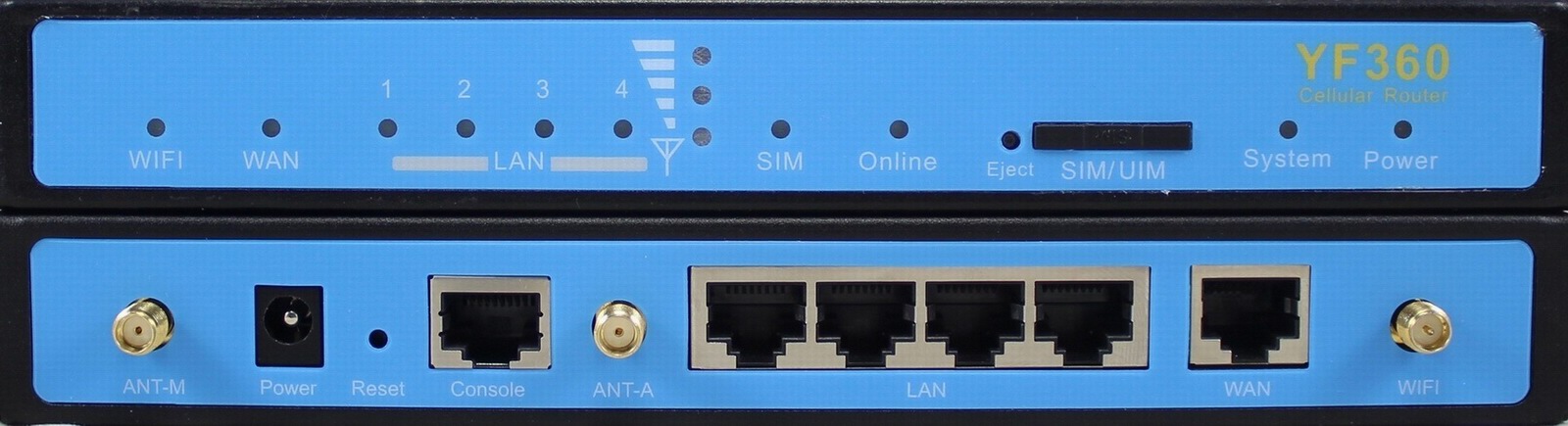

Item
|
Content
|
|
WAN
|
1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
|
|
LAN
|
4 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
|
|
Serial
|
1 RS232(or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space(optional), mark(optional)
Baud rate: 2400~115200 bps
|
|
Indicator
|
"Power", "System", "Online", "Alarm", " Local Network ", "WAN", "WIFI", "Signal Strength"
|
|
Antenna
|
Cellular: 2 Standard SMA female interface, 50 ohm, lighting protection(optional)
WIFI: 1 Standard SMA male interface, 50 ohm, lighting protection(optional)
|
|
SIM/UIM
|
Standard 3V/1.8V user card interface, 15KV ESD protection
|
|
Power
|
Standard 3-PIN power jack, reverse-voltage and over-voltage protection
|
|
Reset
|
Restore the router to its original factory default settings
|
|
Item
|
Content
|
|
Standard Power
|
DC 12V/1.5A
|
|
Power range
|
DC 5~36V
|
|
Working condition
|
Consumption
|
|
Standby
|
280～330mA@12VDC
|
|
Communication
|
325～562mA@12VDC
|
|
Schedule Shutdown
|
2.57~4.2mA@12DVC
|
|
Item
|
Content
|
|
Housing
|
Iron, providing IP30 protection
|
|
Dimensions
|
206x135x28 mm
|
|
Weight
|
790g
|
|
Item
|
Content
|
|
Operating Temperature
|
-35~+75ºC（-31~+167℉）
|
|
Storage Temperature
|
-40~+85ºC (-40~+185℉)
|
|
Operating Humidity
|
95% ( unfreezing)
|
|
Model No.
|
Description
|
|
YF360-L
|
4G LTE FDD Router
|
|
YF360-LT
|
4G LTE TDD Router
|
|
YF360-H
|
3G HSPA+/HSUPA/WCDMA/UMTS Router
|
|
YF360-EV
|
CDMA2000 EVDO Router
|
|
YF360-E
|
EDGE Router
|
|
YF360-G
|
GSM/GPRS Router
|
