Industrial 5G Router NR130-Professional 4G 5G Router Manufacturer

5G NR Cellular router

< >

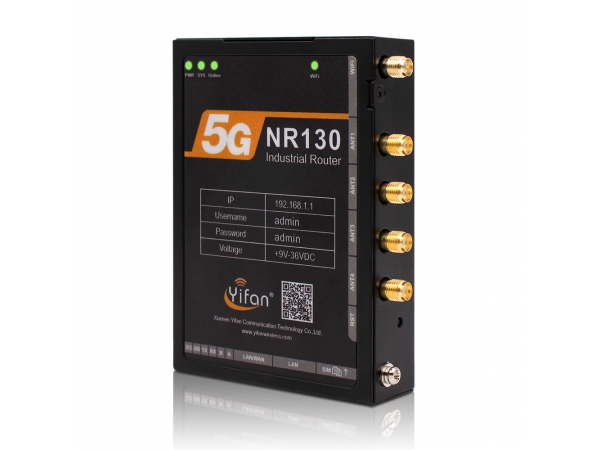

NR130 5G NR Industrial Router 5G RS232 RS485 Modem Dual SIM Card Slot Router

NR130 is wireless communication router for the Internet of Things (IoT), it uses a high-performance industrial level 32-bit communication processor and wireless module, and provides 1xRS232,1xRS485,1xLAN and 1xWAN/LAN port to achieve transparent data transmission and routing function. The product has been widely used in the M2M industry of the IoT industrial chain, such as smart grid, intelligent transportation, smart manufacturing, smart home, and other fields.

Industrial-grade Design

High-performance industrial-grade CPU

High-performance industrial-grade wireless communication module

Support low-consumption mode, scheduled power-on/power-off mode (Optional)

Metal casing, IP30 protection level, suitable for most industrial control applications.

Wide range power input (DC 9~36V)

Stability & Reliability

SIM/UIM card slot with built-in 15KV ESD

Ethernet interface with built

in 15KV ESD

RS232/RS485 with built-in 15KV ESD

Multiple protection mechanism to ensure system stability, always keeping online

Anti-dropping mechanism to ensure that the data terminal is always online

WDT Watchdog design to ensure system stability

Standard & Convenience

Standard RS232, RS485, and Ethernet ports

Provide standard wired WAN port (support standard PPPOE protocol)

Intelligent data terminal, automatically enter transmission status after power-on

Powerful central management software for easy device management (optional)

Easy to use and flexible, has multiple working modes

Convenient system configuration and maintenance interface (including local and

remote WEB or CLI access)

DIN-Rail mounting, wall mounting or desktop

High Performance

1.Support 3G/4G/5G and wired WAN dual link backup（Optional）.

2.Multiple WAN connection methods, include static IP, DHCP, PPPOE, 3G/UMTS/4G/LTE,

3.DHCP-4G/5G

4.Support APN/VPDN

5.Support NTP, RTC embedded.

6.Support multiple DDNS provider service

7.Support multiple online trigger ways,including SMS, ring and data. Support link

8.disconnection when timeout

9.Support remote management, SYSLOG, SNMP, TELNET, SSHD, HTTPS, etc.

10.Support upgrade software from the local and remote maintenance.

11.Support SPI firewall, access control, URL filtering, etc.

12.WIFI 802.11b/g/n/ac. Support AP/AP Client/Bridge mode (Optional).

13.VPN Tunnel: PPTP/L2TP/OPENVPN/IPSEC/GRE

14.Support TCP/IP, UDP, FTP (Optional), HTTP and other network protocols

15.Support DHCP server and DHCP client, NAT, DMZ, QOS.

16.Schedule Reboot, Schedule Online and Offline, etc.

**WIFI Specification**
Standard and Band	Support IEEE802.11b/g/n, 2.4G, Support IEEE802.11ac, 5.8G
Bandwidth	IEEE802.11b/g：Maximum speed rate up to 54Mbps IEEE802.11n：Maximum speed rate up to 150Mbps IEEE802.11ac：Maximum speed rate up to 433Mbps
Security	Support WEP, WPA, WPA2 encrypt methods, optional WPS function
Transmit Power	26dBm (11b）, 21dBm (11ac/MCS7/HT40）, 20dBm (11ac/MCS9/HT80)
Sensitivity	< -72dBm @ 54Mbps

**Harware System**
CPU	Industrial-grade Quad-core CPU
Flash	32MB
DDR3	512MB

**Interfaces**
WAN Interface	1 x Gigabit RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD
LAN Interface	1 x Gigabit RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD
Serial	1 x RS232/RS485 serial interface with built-in 15KV ESD Data bits:5, 6, 7, 8 bits Stop bits:1, 1.5 (optional), 2 bits Error detection: none, even parity, odd parity, SPACE (optional) and MARK (optional) Serial Port Rate: 2400~115200bits/s
LED Indicators	"WIFI", "Online", "PWR", "SYS"
Antenna Interface	Cellular: 4 * Standard SMA female antenna interface, characteristic impedance: 50 Ω WIFI: 1 * Standard SMA male antenna interface, characteristic impedance: 50 Ω
SIM/UIM Slot	Standard drawer type user card interface, support 1.8V/3V SIM/UIM card, built-in 15KV ESD, support dual Micro-SIM cards and eSIM
Power Interface	Terminal power socket
Reset Button	Can reset router’s configuration to default factory setting by this button

File Name : Type: Size: Version:

NR130 5G Router User Manual PDF 3.11 MB

NR130 Industrial 5G Router Spe... PDF 826.24 KB
