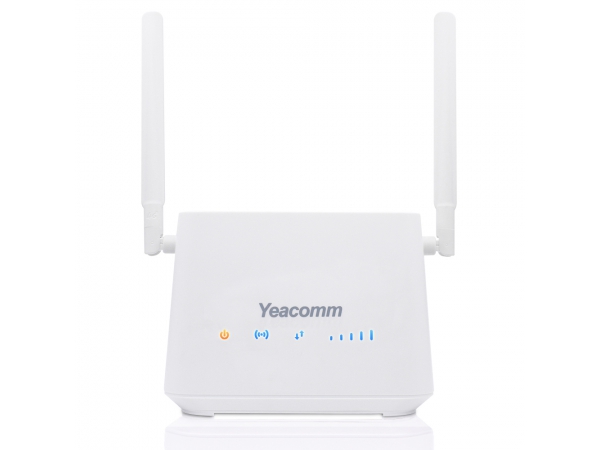

Yeacomm YF-S12 is indoor 4g CPE with sim card slot, sharing wifi function by public cellular network(TD-LTE/LTE-FDD/WCDMA/TD-SCDMA/GSM.)As a high-performance LTE CPE device, the YF-S12 enables home office (SOHO) users to get access to wireless network.
The YF-S12 can work in any of the following network standards:
Frequency Division Duplex (FDD)
Time Division Duplex(TDD)
Dual Carrier High Speed Packet Access Plus (DC-HSPA+)
High Speed Packet Access Plus (HSPA+)
High Speed Uplink Packet Access (HSUPA)
High Speed Downlink Packet Access (HSDPA)
Universal Mobile Telecommunications System (UMTS)
Enhanced Data Rates for Global Evolution (EDGE)
General Packet Radio Service (GPRS)
Global System for Mobile Communications (GSM)
|
Item |
Description |
||
|
Chipset |
ZX297520V3E/ ZTE |
||
|
Memory |
ROM: 128MB NAND Flash |
||
|
RAM: 64MB DDR (128MB if Voice required) |
|||
|
Technical standards |
WAN: LTE/DC-HSPA+/HSPA+/HSPA/UMTS/EDGE/GPRS/GSM |
||
|
WLAN: 802.11b/g/n |
|||
|
Working bands |
Version 1； B1/B2/B3/B5/B7/B8/B28 TDD: Band38/39/40/41 WCDMA:850/900/1900/2100Mhz GSM:850/900/1800/1900mhz
Version 2； B1/B2/B3/B5/B7/B8/B20 TDD: Band38/39/40/41 WCDMA:850/900/1900/2100Mhz GSM:850/900/1800/1900mhz
|
||
|
Speed |
FDD – LTE: 150Mbps/DL, 50Mbps/UL TDD-LTE: 150Mbps/DL，50Mbps/UL HSPA+: 42Mbps/DL 5.76Mbps/UL HSUPA: 5.76Mbps (upload speed)/ HSDPA:7.2Mbps(download speed:) UMTS:384Kbps (download speed/upload speed)
|
||
|
Wifi |
WIFI Standard |
IEEE 802.11b/g/n |
|
|
Highest rate 300 Mbps |
|||
|
RF power |
17dBm(Max) in 11b mode 17dBm(Max) in 11g mode 16dBm(Max) in 11n mode/chain |
||
|
Wifi users |
Max up to 32 users |
||
|
CSFB |
Support |
||
|
External Port |
4*RJ45 port (4* Lan) |
||
|
1*RJ11(optional) |
|||
|
2*SMA external antenna port |
|||
|
1*sim card slot |
|||
|
Buttons |
One power button |
||
|
One WPS button |
|||
|
One WIFI button |
|||
|
One Reset button |
|||
|
Antenna |
External antenna，Gain>5db |
||
|
Size |
180*132*48mm |
||
|
Weight |
320g |
||
|
PSU |
12V/1A |
||
|
power |
9-18V |
||
|
lights |
power，network，signal，LAN |
||
|
Temperature |
Working temperature |
-20～50℃ |
|
|
Storage temperature |
40～85℃ |
||
|
Language |
English/Chinese/Could be customized |
|
NAT |
Supports NAT and Network Address and Port Translation (NAPT) |
|
Supports fragmented message identification during common NAT |
|
|
DHCP Server |
Enables and disables the DHCP server |
|
Configures DHCP server address pools |
|
|
Sets the lease time. |
|
|
Displays the status of the DHCP server address pools, including host names, Media Access Control (MAC) addresses, IP addresses, and remaining lease time |
|
|
Firewall |
Enables and disables the firewall. |
|
Filters LAN MAC addresses |
|
|
Filters LAN IP addresses. |
|
|
Filters URLs. |
|
|
Supports port Mapping |
|
|
Supports demilitarized zone (DMZ). |
|
|
Supports Universal Plug and Play (UPnP). |
|
|
Speed limit |
|
|
IPv4v6 dual stack |
File Name : Type: Size: Version: Yeacomm YF-S12 4g LTE indoor V... PDF 287.05 KB
