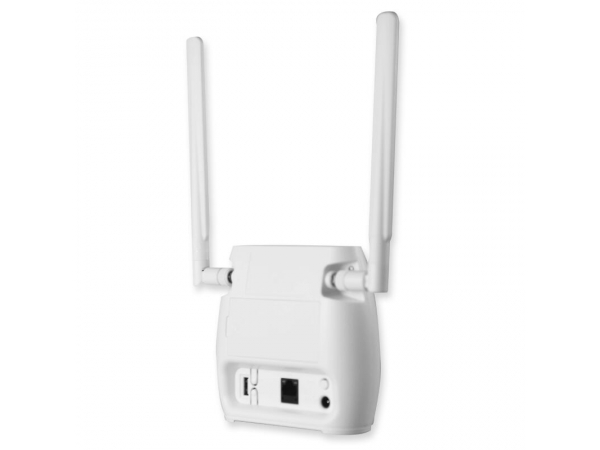

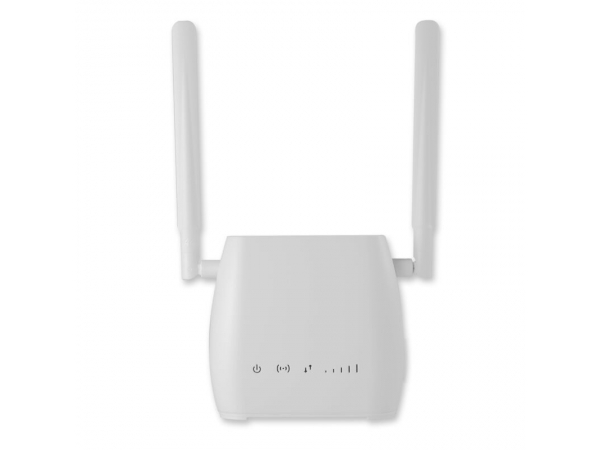

As a high-performance LTE CPE device, the S10 enables home office (SOHO) users to get access to wireless and wired networks
The S10 can work in any of the following network standards:
Frequency Division Duplex (FDD)
Time Division Duplex(TDD)
lDual Carrier High Speed Packet Access Plus (DC-HSPA+)
lHigh Speed Packet Access Plus (HSPA+)
lHigh Speed Uplink Packet Access (HSUPA)
lHigh Speed Downlink Packet Access (HSDPA)
lUniversal Mobile Telecommunications System (UMTS)
lEnhanced Data Rates for Global Evolution (EDGE)
lGeneral Packet Radio Service (GPRS)
lGlobal System for Mobile Communications (GSM)
The S10 provides the following services and functions :
Data services
Support 3GPP Release 9/10 compliant
Support 1TX/2RX
Support UE Category 3/4
Supports QoS service flow initiated by CPE
Supports Dynamic Host Configuration Protocol
Built-in web server for web-based configuration
Password protected access and configuration
Supports IEEE 802. 3, IEEE 802.3u
Support external atenna
Support Battery
USIM Slot
|
No. |
Feature |
Description |
Comments |
|
|
LTE BB ASIC |
ZX297520V2 |
ZTE |
|
|
LTE RF ASIC |
WTR234220 |
ZTE |
|
|
Flash |
256MByte |
Gigadevice |
|
|
SDRAM |
1024M bite |
|
|
|
WIFI |
RTL8192ES |
Realtek |
|
|
Ethernet LAN port |
1*10/100 auto-sensing, auto-MDX |
|
|
|
LED Indicators |
Signal Strength / LTE/WIFI/ETH/POWEER |
|
|
|
Button |
Reset、WPS 、 WIFI |
|
|
|
Power supply |
Input: Universal range 100~240VAC Output: 12V 1A |
|
|
|
Battery |
8.4v / 2000maH(optional) |
|
|
Item |
Description |
|
|
Technical standards |
WAN: LTE/DC-HSPA+/HSPA+/HSPA/UMTS/EDGE/GPRS/GSM |
|
|
|
WLAN: 802.11b/g/n |
|
|
Working bands |
FDD: Band1/2/3/5/7/8//20/28A(band2/3/4/5/7/8/28A/28B optional) TDD: Band38/39/40/41 WCDMA:850/900/1900/2100Mhz GSM:850/900/1800/1900mhz The frequencies could be customized for quantity order |
|
|
Speed |
FDD - LTE Downlink：150Mbps， Uplink：50Mbps TDD-LTE: Downlink：150Mbps， Uplink：50Mbps HSPA+: 42Mbps(download speed) 5.76Mbps(upload speed) HSUPA: 5.76Mbps (upload speed)/ HSDPA:7.2Mbps(download speed:) UMTS:384Kbps (download speed/upload speed) (it is cat4) |
|
|
Wifi |
WIFI Standard |
IEEE 802.11b/g/n |
|
|
Highest rate: 300Mbps |
|
|
|
RF power |
17dBm(Max) in 11b mode 17dBm(Max) in 11g mode 16dBm(Max) in 11n mode/chain |
|
|
Wifi users |
Max up to 32 users |
File Name : Type: Size: Version:
YeacommS10IDU4gLTEindoorCPE PDF 301.85 KB indoor CPE s10
