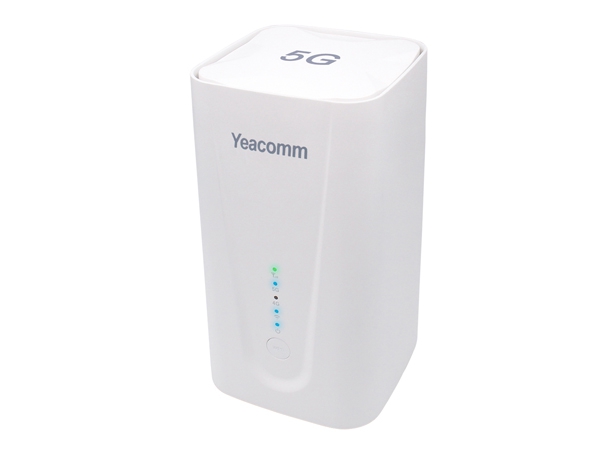

NR330

Technical specifications

5G Platform

MTK T750

Support Bands

Standard:

5G Sub-6: n1/3/5/7/8/20/28(a&b)/38/40/41/77/78/79

LTE FDD: B1/3/5/7/8/18/19/20/28(a&b)/32

LTE TDD: B38/40/41/42/43/46

WCDMA: B1/5/8

Optional：

5G NR: n2/n5/n7/n12/n14/n25/n41/n48/n66/n71/n77/n78

LTE: B2/4/5/7/12/13/14/17/25/26/29/30/41/46/48/66/71

WCDMA: B2/B4/B5

Note: according to the user needs to choose different modules, can support different network system

Speed

5G Sub-6: Downlink 4.67Gbps, uplink 1.25Gbps

LTE Cat20: Downlink 1.6Gbps, uplink 150Mbps

5G/4G TX/RX

2T4R/1T2R

Transmitting power

< 23dBm

Receive Sensitivity

< -97dBm

WIFI

WIFI Band

2.4GHz/5GHz

Wi-Fi6 Speed

2.4GHz 4x4MIMO 11ax, ~1.146Gbps
5GHz 4x4MIMO 11ax, ~2.4Gbps

WIFI Standard

IEEE 802.11b/g/n/ac/ax

Wi-Fi Band

20MHz, 40MHz, 80MHz, 80+80MHz

Network Features

Networking protocols

PPTP、L2TP、IPsec(Optional)、OpenVPN, PPPoE、DHCP、Client/Server、NAPT、NTP

High-speed router

Built-in DHCP Server，DNS Client，support NAT

Dialing function

Manual dialing，autodialing，PPPOE dialing。

SIM card Features

PIN Management, SIM card Authentication

Management

Web smart

support

Centralized network

management

support

Remote Upgrade

support

Security

Security Features

Support port filtering, IP filtering, MAC filtering, URL filtering, MAC address

binding

Speed control

Support UL and DL speed limit , port speed limit ,

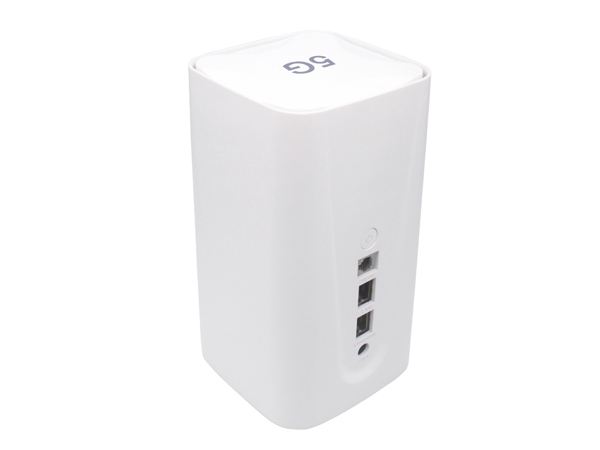

Hardware

LAN/WAN

1*RJ-45

LAN

1*RJ-45

FXS

1*RJ-11 (Optional)

Standard

Power Supply

DC 12V/3A

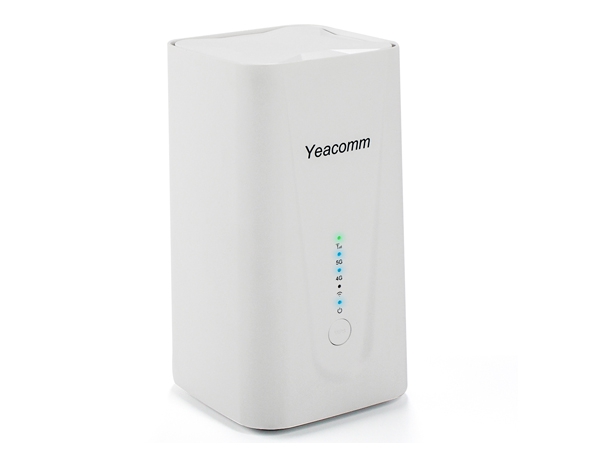

Indicators

Singal, 5G, 4G, WIFI, and Power

Physical Characteristics

Working temperature

-10~+50ºC

Stock  temperature

-40～85℃

huminity

≤95％
