5G NR Cellular router

< >

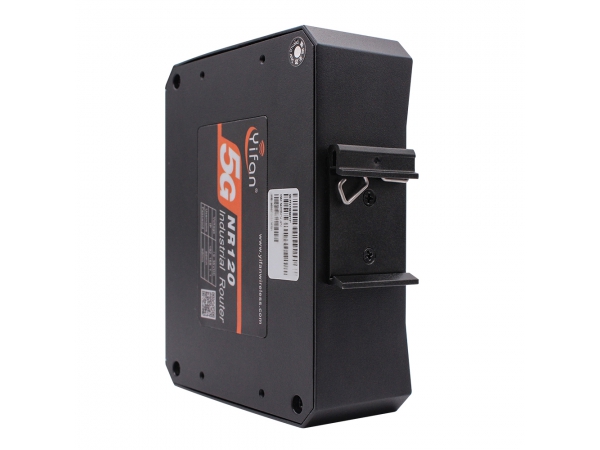

SA NSA NR120 4G LTE 5G NR WIFI Router with CAN Port Serial Port

NR120 is wireless communication router for the Internet of Things (IoT), it uses a high-performance industrial level 32-bit communication processor and wireless module, embedded with the real-time operating system as the software platform, and using 3G/4G/5G cellular network to provide users with wireless long-distance large data transmission function. With wide operating temperature range and IP30 metal housing, NR120 is a reliable solution for industrial wireless applications.

Industrial-grade Design

High-performance industrial-grade CPU

High-performance industrial-grade wireless communication module

Support low-consumption mode, scheduled power-on/power-off mode (Optional)

Metal casing, IP30 protection level, suitable for most industrial control applications.

Wide range power input (DC 9~36V)

Stability & Reliability

SIM/UIM card slot with built-in 15KV ESD

Ethernet interface with built

in 15KV ESD

RS232/RS485 with built-in 15KV ESD

Multiple protection mechanism to ensure system stability, always keeping online

Anti-dropping mechanism to ensure that the data terminal is always online

WDT Watchdog design to ensure system stability

Standard & Convenience

Standard RS232, RS485, and Ethernet ports

Provide standard wired WAN port (support standard PPPOE protocol)

Intelligent data terminal, automatically enter transmission status after power-on

Powerful central management software for easy device management (optional)

Easy to use and flexible, has multiple working modes

Convenient system configuration and maintenance interface (including local and

remote WEB or CLI access)

DIN-Rail mounting, wall mounting or desktop

High Performance

1.Support 3G/4G/5G and wired WAN dual link backup（Optional）.

2.Multiple WAN connection methods, include static IP, DHCP, PPPOE, 3G/UMTS/4G/LTE,

3.DHCP-4G/5G

4.Support APN/VPDN

5.Support NTP, RTC embedded.

6.Support multiple DDNS provider service

7.Support multiple online trigger ways,including SMS, ring and data. Support link

8.disconnection when timeout

9.Support remote management, SYSLOG, SNMP, TELNET, SSHD, HTTPS, etc.

10.Support upgrade software from the local and remote maintenance.

11.Support SPI firewall, access control, URL filtering, etc.

12.WIFI 802.11b/g/n/ac. Support AP/AP Client/Bridge mode (Optional).

13.VPN Tunnel: PPTP/L2TP/OPENVPN/IPSEC/GRE

14.Support TCP/IP, UDP, FTP (Optional), HTTP and other network protocols

15.Support DHCP server and DHCP client, NAT, DMZ, QOS.

16.Schedule Reboot, Schedule Online and Offline, etc.

**Cellular Specification**
Standard and Band	5G NR: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78 LTE: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43 WCDMA: B1/B5/B8 Optional: 5G NR: n2/n5/n12/n14/n25/n30/n41/n48/n66/n70/n71/n77 LTE: B2/B4/B5/B12/B13/B29/B30/B66/B71/B41/B46(LAA)/B48 Optional: 5G NR: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n7 7/n78/n79 LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE TDD: B34/B38/B39/B40/B41/B42/B43/ B46(LAA)B48
Bandwidth	5G NR：DL 3.4Gbps， UL 900Mbps LTE Cat19：DL 1.6Gbps，UL 211Mbps HSPA+：DL 42Mbps，UL 5.76Mbps
Transmit Power	< 23dBm
Sensitivity	< -97dBm

**WIFI Specification**
Standard and Band	Support IEEE802.11b/g/n, 2.4G, Support IEEE802.11ac, 5.8G
Bandwidth	IEEE802.11b/g：Maximum speed rate up to 54Mbps IEEE802.11n：Maximum speed rate up to 300Mbps IEEE802.11ac：Maximum speed rate up to 866Mbps
Security	Support WEP, WPA, WPA2 encrypt methods, optional WPS function
Transmit Power	26dBm (11b）, 21dBm (11ac/MCS7/HT40）, 20dBm (11ac/MCS9/HT80)
Sensitivity	< -72dBm @ 54Mbps

**Harware System**
CPU	Industrial-grade Quad-core CPU
Flash	Nor flash 16MB NAND flash 128MB
DDR3	512MB

**Interface**
WAN Interface	1 x Gigabit RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD
LAN Interface	1 x Gigabit RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD
Serial	1 x RS232/RS485 serial interface with built-in 15KV ESD Data bits:5, 6, 7, 8 bits Stop bits:1, 1.5 (optional), 2 bits Error detection: none, even parity, odd parity, SPACE (optional) and MARK (optional) Serial Port Rate: 2400~115200bits/s
LED Indicators	"WIFI", "Online", "PWR", "SYS"
Antenna Interface	Cellular: 4 * Standard SMA female antenna interface, characteristic impedance: 50 Ω WIFI: 2 * Standard SMA male antenna interface, characteristic impedance: 50 Ω GPS: 1 calibrated SMA female antenna interface, characteristic impedance 50 ohms (optional)
SIM/UIM Slot	Standard drawer type user card interface, support 1.8V/3V SIM/UIM card, built-in 15KV ESD, support dual-SIM card
Power Interface	Terminal power socket
Reset Button	Can reset router’s configuration to default factory setting by this button

**Physical Properties**
Casing	Metal casing, IP30 protection level, suitable for most industrial control applications.
Dimensions	135 x 110 x 43mm (excluding antennas and mountings parts)
Weight	500g

**Power**
Input Voltage	DC 12V/1.5A
Accepted Range	DC 9~36V

文件名称 : 文件格式: 文件大小: 文件版本:

NR120 5G Industrial Router Use... PDF 2.02 MB

NR120 Industrial 5G Router Spe... PDF 783.07 KB V1.0.1
