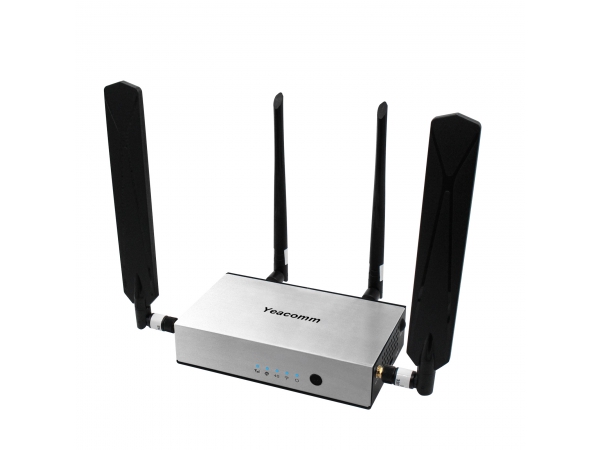

Yeacomm NR800-LA employs the high-level practice LTE-A Pro technology with data rates up to 600Mbps. The built-in high gain external antennas could provide more powerful signal acquisition capability and it could provide high-speed and reliable network wherever you want.
High Performance Processor
MTK7621 high performance dual-core CPU ensures the high speed processing performance.
Super-fast WiFi up to 1.8Gbps
Yeacomm NR800-LA supports WiFi6 and the WiFi speed is up to 1.8Gbps (1200Mbps on 5Ghz and 573Mbps on 2.4Ghz).
Multiple functions
It supports Mesh Networking, band lock, PCI lock, bridge mode, TTL setting, multiple VPNs, TR069 etc.
Ultra-fast 4G CAT12 speed up to 600Mbps
It supports 4G LTE-A CAT12 network and download speed is up to 600Mbps. The external cellular antennas ensure the best signal is received wherever it is placed.
Efficient Heat Dissipation
The metal housing and built-in cooling fan greatly improve the heat dissipation effect and ensure long time high-speed and stable operation.
Plug and Play
The device could automatically fix network problems in real-time without manually restarting or reconfiguring the network, makes it easier to access the Internet.
|
Cellular Parameters |
|
|
Frequency Band |
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE TDD: BB34/B38/B39/B40/B41/B42/B43/B46 (LAA)/B48 (CBRS) UMTS WCDMA : B1/B2/B3/B4/B5/B6/B8/B19 GNSS: GPS/GLONASS/BDS/Galileo |
|
MIMO |
LTE: DL 2×2 MIMO |
|
Theoretical Bandwidth |
LTE CAT12: DL 600Mbps, UL 150Mbps UMTS: DC-HSDPA DL 42Mbps HSUPA UL 5.76Mbps WCDMA DL384Kbps, UL384Kbps |
|
WIFI Parameters |
|
|
WIFI Protocol |
IEEE802.11 a/b/g/n/ac/ax (WIFI 6) |
|
WIFI Frequency Band |
2.4GHz+5GHz |
|
Theoretical Bandwidth |
5GHz 4x4MIMO 11ax, 1.2Gbps 2.4GHz 4x4MIMO 11ax, 0.573Gbps |
|
Channel Bandwidth |
20MHz, 40MHz, 80MHz |
|
Hardware |
|
|
CPU |
MTK7621 CPU@880MHz,Dual-core |
|
Flash |
128MB |
|
DDR3 |
512MB |
|
Software |
|
|
Network Status |
Signal strength Network type(LTE/WCDMA/GPRS) SIM card status, Wi-Fi Status, LAN Status |
|
System Status |
Mobile parameters, APN/DHCP/Wi-Fi information, Memory details, Version/Device information |
|
Internet Settings |
Network mode setup, Data switch, Roaming setup |
|
APN Setup |
APN name, Nat Switch on APN bear, PDP(IPV4/IPV6/IPV4V6), MTU size |
|
SIM Card |
PIN Management SIM card Authentication |
|
DHCP Setup |
Enable/disable DHCP server Configure DHCP IP Pool Configure DHCP Lease Time |
|
Static Route |
Route Setup on WAN/LAN interface |
|
DDNS |
Support |
|
Band Lock |
Support |
|
PCI Lock |
Support |
|
Cell Lock |
Support |
|
Carrier SIM Lock |
Support |
|
VPN |
PPTP, L2TP, IPSEC, Wireguard, Zerotier |
|
Backup/restore |
Encryption backup current settings and restore the backup settings (Export/Import Configuration) |
|
Work Mode |
NAT/ Router mode |
|
Device Management |
|
|
Software Update |
WebUI update TR069 update |
|
TR069 (Optional) |
HTTP/HTTPS Supports upload / download the ACS specified file Support download CPE configuration file Support configure & queries parameters Support remote upgrade Support cycle monitor |
|
SNMP(Optional) |
Support |
|
Diagnostics |
Ping/Trace/Tcpdump Export current diagnosis results and operation logs |
|
Power Supply |
|
|
Standard Power Supply |
DC 12V/3A |
|
Power Supply Range |
DC 9~24V |
|
Working Current |
< 1.1A (12V) |
|
Interfaces |
|
|
LAN/WAN Port |
1 x 1Gigabit Ethernet (RJ45), auto MDI/MDIX |
|
LAN Port |
1 x 1Gigabit Ethernet (RJ45), auto MDI/MDIX |
|
Indicator |
Signal, 4G, WIFI, Power |
|
SIM/UIM Card |
Nano-SIM, Compatible with eSIM card |
|
Power Interface |
Three-core DC locomotive power socket, built-in power reverse protection |
|
USB Port |
Type C 2.0 |
|
Button |
Reset, WPS |
|
Physical Characteristics |
|
|
Outer Shell |
Metal housing, protection level IP30 |
|
Dimensions |
160x94x37 mm |
|
Weight |
985g |
|
Operating Temperature |
-10~+50ºC |
|
Storage Temperature |
-40~+85ºC |
|
Humidity |
95% (No-condensing) |
