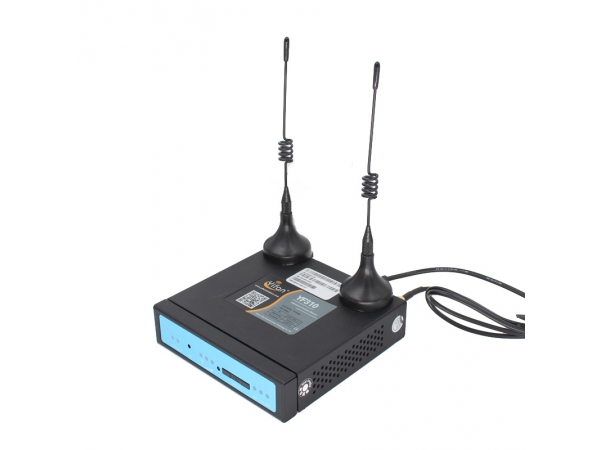

YF310 V2 Industrial Router is a kind of cellular terminal device that provides large data transfer function by public GPRS/CDMA/WCDMA/EVDO/LTE network. It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232/RS485 and Ethernet port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial and Ethernet devices with only basic configuration.The product has been widely used in the M2M/IoT industry.
Design for Industrial Application
High-performance industrial-grade CPU
High-performance industrial-grade wireless communication module
Support low-consumption mode, scheduled power-on/power-off mode (Optional)
Metal casing, IP30 protection level, suitable for most industrial control applications.
Wide range power input (DC 5~36V)
Stability and Reliability
SIM/UIM card slot with built-in 15KV ESD
Ethernet interface with built-in 15KV ESD
RS232/RS485 with built-in 15KV ESD
Multiple protection mechanism to ensure system stability, always keeping online
Auto recovery mechanism, including online detect and auto redial
Support hardware and software WDT
Standard and Convenience
Support standard RS232 (or RS485/RS422) and Ethernet port
Provide management software for remote management
Support intellectual mode, automatically enter transmission status after power-on
Easy to use and flexible, has multiple working modes
Convenient configuration and maintenance interface (WEB or CLI)
DIN-Rail mounting, wall mounting or desktop
High-performance
Support 3G/HSPA/4G WAN access methods.
Support NTP, RTC embedded
Support APN/VPDN
Support multiple DDNS provider service
Support remote management
Support DHCP server/client, NAT, DMZ host, Qos.
Support firewall, URL block, traffic statistics, real time link speed statistics, etc.
Support VPN server (PPTP, L2TP, OPENVPN,IPSEC and GRE)
Support VPN Client (PPTP, L2TP, OPENVPN,IPSEC and GRE)
Support SMS, phone ringing, serial data, network data online/offline trigger modes
Support mulitiple DDNS provider service
Full protocol support, such as TCP/IP, UDP, ICMP, SMTP, HTTP, POP3, OICQ, TELNET, FTP, SNMP, SSHD.
Schedule Reboot, Schedule Online and Offline, etc.
| Standard and Band |
LTE FDD: B1/B3/B5/B7/B8/B20/B28 B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66 (Optional), B2/B4/B5/B12/B13/B17/B66/B71 (Optional) LTE TDD: B38/B40/B41 HSPA+/HSUPA/HSDPA/WCDMA/UMTS 2100/1900/900/850MHz EV-DO: BC0 CDMA 1x: BC0 EDGE/GPRS/GSM 850/900/1800/1900MHz |
| Bandwidth |
FDD-LTE: Downstream rate 150Mbps, uplink rate 50Mbps TD-LTE: Downstream rate 130Mbps, uplink rate 35Mbps DC-HSPA+: Downstream rate 42Mbps, uplink rate 5.76 Mbps HSPA+: Downstream rate 21Mbps, uplink rate 5.76 Mbps UMTS: 384Kbps |
| Transmit Power |
< 23dBm |
| Sensitivity |
< -93.3dBm |
| CPU | Industrial-grade CPU |
| Flash | 16MB(Extendable to 64MB) |
| DDR2 | 128MB |
| LAN Interface | 1 x 10/100M RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD |
| Serial |
1 x RS232/RS485 serial interface with built-in 15KV ESD Data bits:5, 6, 7, 8 bits Stop bits:1, 1.5 (optional), 2 bits Error detection: none, even parity, odd parity, SPACE (optional) and MARK (optional) Serial Port Rate: 2400~115200bits/s |
| LED Indicators |
"PWR", "SYS", "SIM", "Online", "ETH", “Signal Strength” |
| Antenna Interface |
Cellular: 2 * Standard SMA female antenna interface, characteristic impedance: 50 Ω |
| SIM/UIM Slot |
Standard SIM card slot, support 1.8V/3V SIM/UIM card, built-in 15KV ESD |
| Power Interface |
Standard 3-PIN power jack, reverse-voltage and overvoltage protection |
| Reset Button |
Restore the router to its original factory default settings |
| Casing |
Metal casing, IP30 protection level, suitable for most industrial control applications |
| Dimensions |
100x97x25 mm (excluding antennas and mountings) |
| Weight | 320g |
| Input Voltage | DC 12V/1.5A |
| Accepted Range | DC 5~36V |
文件名称 : 文件格式: 文件大小: 文件版本:
YF310 Series 4G 3G Router user... PDF 2.57 MB
YF310 Series CELLULAR ROUTER S... PDF 847.36 KB
