Yeacomm NR610-LA is a high speed 4G LTE-A outdoor CPE specifically designed to meet integrated data needs for residential, business and enterprise users. In the service area of the 4G LTE/3G network, it enables wide service coverage and provides high data throughput and networking features to customers who needs easy broadband access.
|
Cellular Parameters |
|
|
Frequency Band |
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE TDD: BB34/B38/B39/B40/B41/B42/B43/B46 (LAA)/B48 (CBRS) UMTS WCDMA : B1/B2/B3/B4/B5/B6/B8/B19 GNSS: GPS/GLONASS/BDS/Galileo |
|
MIMO |
LTE: DL 2×2 MIMO |
|
Theoretical Bandwidth |
LTE CAT12: DL 600Mbps, UL 150Mbps UMTS: DC-HSDPA DL 42Mbps HSUPA UL 5.76Mbps WCDMA DL384Kbps, UL384Kbps |
|
WIFI Parameters |
|
|
WIFI |
IEEE802.11 a/b/g/n 2.4GHz (only for easy device configuration) |
|
Hardware |
|
|
CPU |
MTK7621 CPU@880MHz,Dual-core |
|
Flash |
128MB |
|
DDR3 |
512MB |
|
Software |
|
|
Network Status |
Signal strength Network type(LTE/WCDMA/GPRS) SIM card status, Wi-Fi Status, LAN Status |
|
System Status |
Mobile parameters, APN/DHCP/Wi-Fi information, Memory details, Version/Device information |
|
Internet Settings |
Network mode setup, Data switch, Roaming setup |
|
APN Setup |
APN name, Nat Switch on APN bear, PDP(IPV4/IPV6/IPV4V6), MTU size |
|
SIM Card |
PIN Management SIM card Authentication |
|
DHCP Setup |
Enable/disable DHCP server Configure DHCP IP Pool Configure DHCP Lease Time |
|
Static Route |
Route Setup on WAN/LAN interface |
|
DDNS |
Support |
|
Band Lock |
Support |
|
PCI Lock |
Support |
|
Cell Lock |
Support |
|
Carrier SIM Lock |
Support |
|
VPN |
PPTP, L2TP, IPSEC, Wireguard, Zerotier |
|
Backup/restore |
Encryption backup current settings and restore the backup settings (Export/Import Configuration) |
|
Work Mode |
NAT/ Router mode |
|
Device Management |
|
|
Software Update |
WebUI update TR069 update |
|
TR069 (Optional) |
HTTP/HTTPS Supports upload / download the ACS specified file Support download CPE configuration file Support configure & queries parameters Support remote upgrade Support cycle monitor |
|
SNMP(Optional) |
Support |
|
Diagnostics |
Ping/Trace/Tcpdump Export current diagnosis results and operation logs |
|
Power Supply |
|
|
PoE Input |
48V/0.3A (IEEE 802.3af) |
|
DC Input |
12V/1.5A |
|
Interfaces |
|
|
PoE/LAN Port |
1 x Gigabit RJ45 LAN Port with PoE |
|
DC Power Interface |
1 x Three-core DC locomotive power socket, built-in power reverse protection |
|

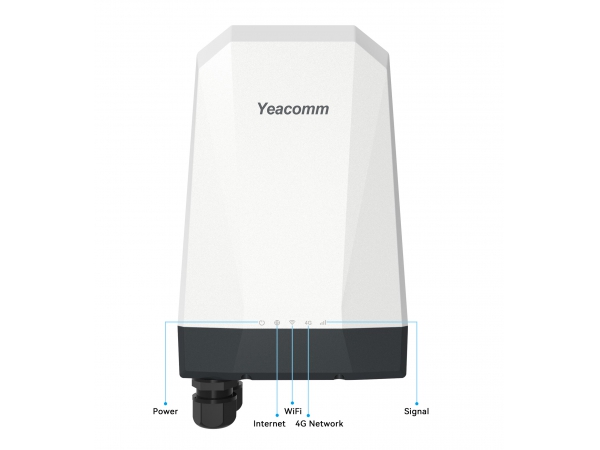

Indicator |
Power, Internet, WIFI, 4G/5G, Signal |
|
SIM/UIM Card |
2 x Nano-SIM Card slots, Compatible with eSIM card |
|
USB Port |
Type C 2.0 |
|
Reset Button |
Reset the parameters to default setting |
|
PoE/LAN Port |
1 x Gigabit RJ45 LAN Port with PoE |
|
Physical Characteristics |
|
|
Outer Shell |
ABS+PC Material Cover with Metal Base |
|
Waterproof Level |
IP67 |
|
Installation |
Pole Mounting or Wall Mounting |
|
