Overview

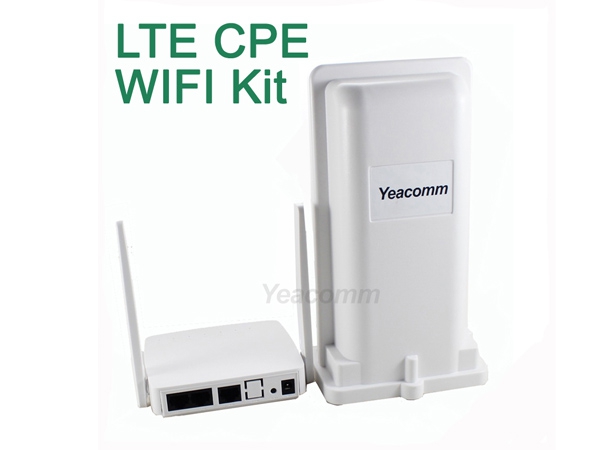

Yeacomm 4G WIFI KIT is divided into two parts (an outdoor LTE unit with sim card slot and an indoor unit with WIFI function.)
The outdoor unit designed with built-in high gain antenna to achieve LTE signal amplification. The water-proof and lightning-proof casing helps the unit to be good used at outdoors.
The indoor unit is placed in the room. It is just like a normal wireless router with 2 Lan ports and WIFI.
These 2 parts connected By Category 5 cable. The indoor unit supply power to the outdoor unit through POE, while the indoor unit provides two Ethernet ports and WIFI signal.
|
Ccellular Specification
|
|
| Frequency |
FDD: B1/B2/B3/B5/B7/B8/B12/B17/B20, B4/B28 (Optional)
TDD Band 38/39/40/41
WCDMA: 900/2100Mhz, 850/900/1900/2100Mhz(Optional)
GSM: 850/900/1800/1900Mhz
Frequency can be customized according to your requirements
|
|
Speed(CAT4)
Max
|
FDD - LTE Downlink：150Mbps， Uplink：50Mbps
TDD-LTE: Downlink：150Mbps， Uplink：50Mbps
HSPA+: 42Mbps(download speed) 5.76Mbps(upload speed)
HSUPA: 5.76Mbps (upload speed)/ HSDPA:7.2Mbps(download speed:)
UMTS:384Kbps (download speed/upload speed)
|
|
Mainboard
|
|
|
Chipset model
|
ATHEROS 9341
|
|
Speed
|
533MHz
|
|
ROM
|
SDRAM：64MByte
FLASH ：8MByte
|
|
4G module
|
Embedded
|
|
Item
|
Content
|
|
Lan
|
1 x 10/100 Mbps Ethernet port(RJ45), |
|
Indicator
|
"Power", "Sim", “ETH”, “Run” and “Signal” |
|
Antenna
|
Cellular: high gain Internal 8DBi |
|
SIM/UIM
|
Standard 3V/1.8V user card interface, 15KV ESD protection |
|
Power
|
POE,through RJ45 port |
|
Reset
|
Restore the router to its original factory default settings |
|
Item
|
Content
|
|
Standard Power
|
Input：100V~240V, 50Hz~60Hz
Output:15V DC±10%
Output: 500mA
|
|
Power Range
|
5V---18V |
|
Working temperature
|
-30～60℃
|
|
Storage temperature
|
-40～85℃
|
|
Humidity
|
≤95％
|
|
Dimension
|
252x112x58mm
|
|
weight
|
about 560g
|
|
Water proof and
dust proof
|
IP66
|
|
Physical |
|
|
Housing |
Plastic |
|
Dimensions |
105mm x 95mm x 20mm |
|
Weight |
125g |
